Technical Specifications:
Maximum capacity: 300 gallons per minute
Maximum pipe diameter: 5" (125 mm)
Voltage: 36 Volt - Wattage: 2.25 Watts
Impulse Bands (4)- Length: 13" 2" each Width: 0.8" (20 mm)
Electronic unit measurements: 7.9"/4.9"/1.6" (200/125/40 mm )
Frequency range: 3-32 kHz
Required space: Minimum 32" (800 mm )
Programs: 5 (For pipes: (1", 2", 3", 4" & 5")
Power supply specifications:
Input- 120/240 Volt 50-60 Hz Output- 36 Volts 600 mA
Warranty 25 Years

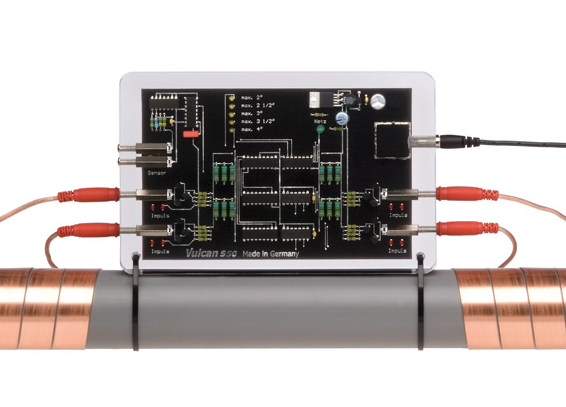

Vulcan S50 Includes: 1 Vulcan S50 electronic unit, 4 Vulcan Impulse Bands, 1 Power Supply, 10 Cable Clips, 1 Product brochure, 1 Warranty card
Shipping Measurements: 20.5" x 16.9" x 5.9" - 10 lbs
Order ships via UPS Ground
Transit Time: 5-7 Days
